PlantExplorer EDEN

The PlantExplorer EDEN, a state-of-the-art camera system integrated within a climate-controlled cabinet, designed to deliver comprehensive, real-time insights into plant health. The PlantExplorer EDEN is your ultimate all-in-one solution for measuring plant stress, offering precise photosynthesis monitoring along with advanced multispectral and color parameter analysis.  Elevate your research with the PlantExplorer EDEN—your complete tool for in-depth plant health analysis and effective stress management in any climate.

PlantExplorer EDEN

The PlantExplorer EDEN is meticulously designed to measure photosynthetic efficiency while capturing multispectral and color data of plants. By integrating the PlantExplorer into the advanced capabilities of the Bronson Climate cabinet, the PlantExplorer EDEN enables precise environmental simulations, allowing real-time imaging of plant behavior.

The unique advantage of the PlantExplorer EDEN lies in its ability to provide insights into plant responses under fluctuating climates, increased temperatures, and drought conditions. The system's sophisticated analysis software automatically calculates essential plant health parameters, ensuring accurate and comprehensive data collection.

Key Features

Climate Control:

Temperature range from +10°C to +45°C

Humidity control between 30% and 90%

Light intensity from 50 to 750 µmol/s/m²

CO2 concentration from 450 to 2000 ppm.


Advanced Monitoring: Real-time imaging and analysis of plant health parameters, including:

Fv/Fm, Fq'/Fm', NPQ, ETR, NDVI Color, Chlorophyll and Anthocyanin Index.


Precision Simulation: 96 steps per day for meticulous environmental control, facilitating detailed studies on plant behavior and adaptation.

A climatized cabinet with an integrated plant phenotyping camera system used in Wageningen.

Specifications PRO EDEN

Dimensions 1500mm x 830mm x 1950mm
Weight 350Kg
Material Stainless steel
Voltage 110-240
Watt 3600
Imaging size PRO 500mm x 500mm
Maximum plant height 1200mm

Specifications MAX EDEN

Dimensions 1700mm x 1050mm x 1950mm
Weight 430Kg
Material Stainless steel
Voltage 400
Watt 10.000
Imaging size PRO 800mm x 800mm
Maximum plant height 1200mm

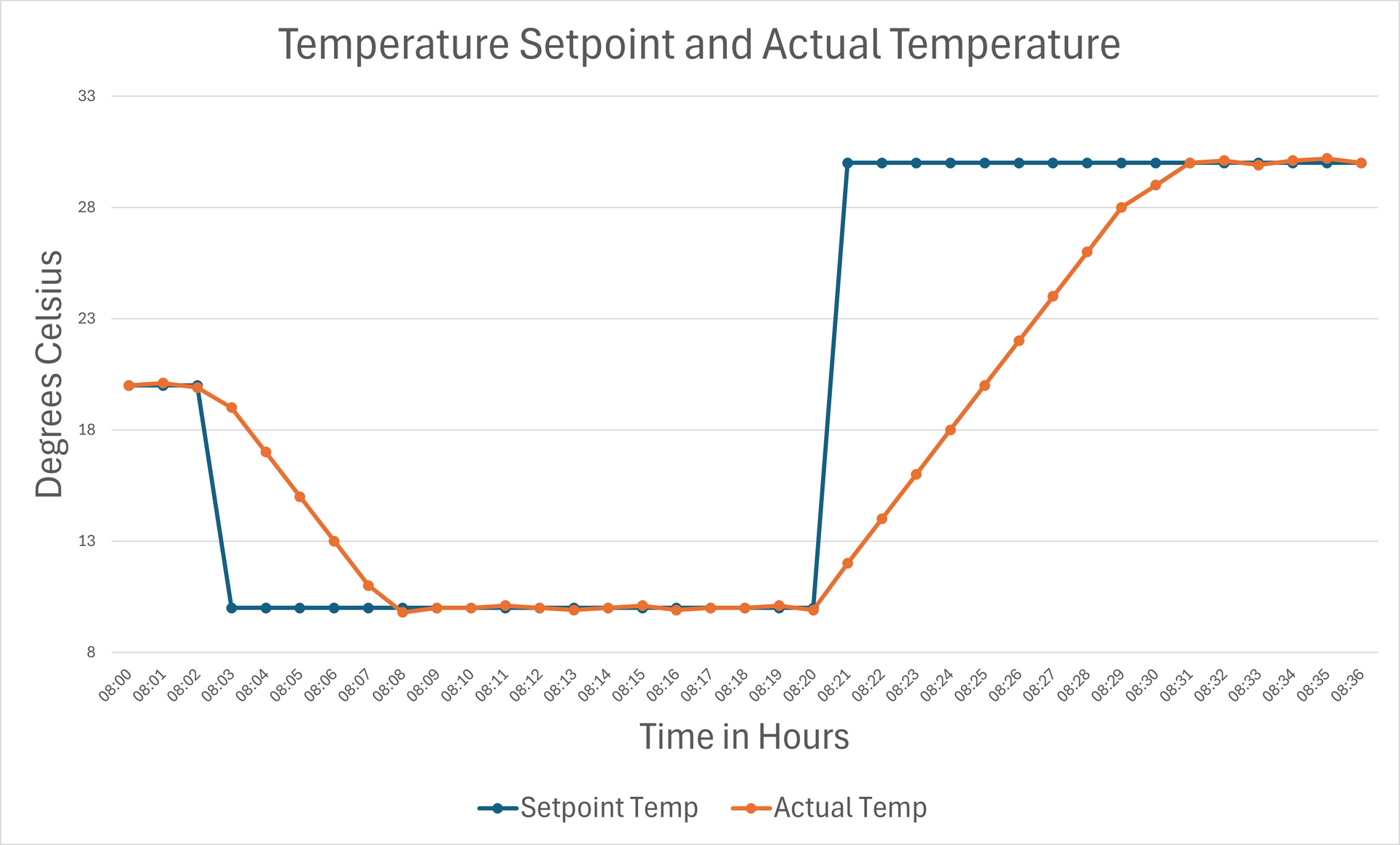

Temperature Control For PRO and MAX

Temperature range +10 / +45 Degrees Celsius
Maximum temperature Increase 2 Degrees Celsius per minute
Maximum Temperature Decrease -2 Degrees Celsius per minute
Accuracy +/- 0,2 degrees Celsius

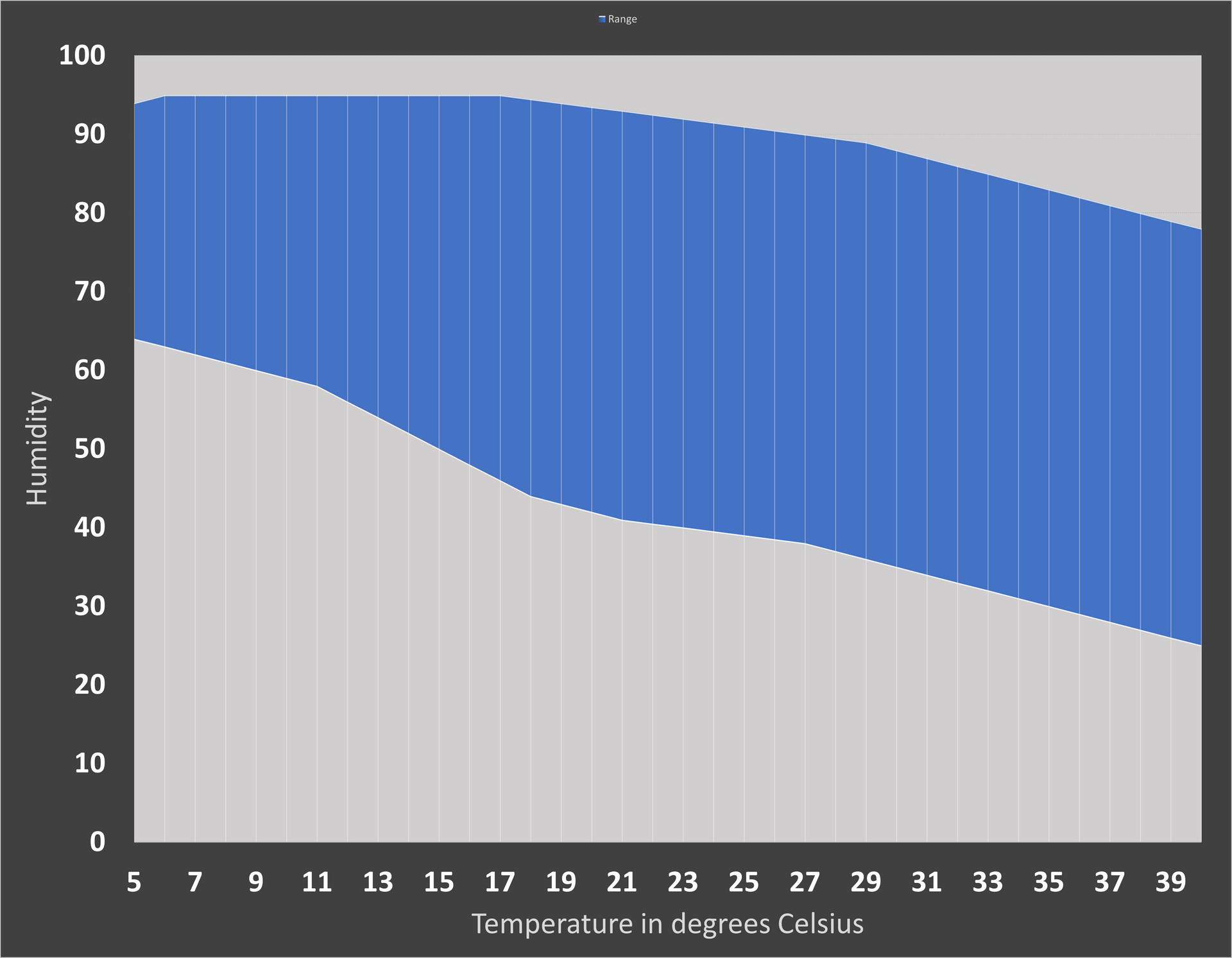

Humidity Specifications For PRO and MAX

Humidity Range in % 30 - 90%
Maximum Humidity Increase 10% per minute
Maximum Humidity Decrease 2% per minute
Accuracy +/- 5%

Light Spectrum for PRO and MAX

Channel 1 3000K White
Channel 2 3000K White
Channel 3 415 nm
Channel 4 660 nm
Channel 5 735 nm

Each channel can be controlled from 5% up to 100%. The maximum amount of light at 70 centimeters distance from the LEDS is 750 µmoll.

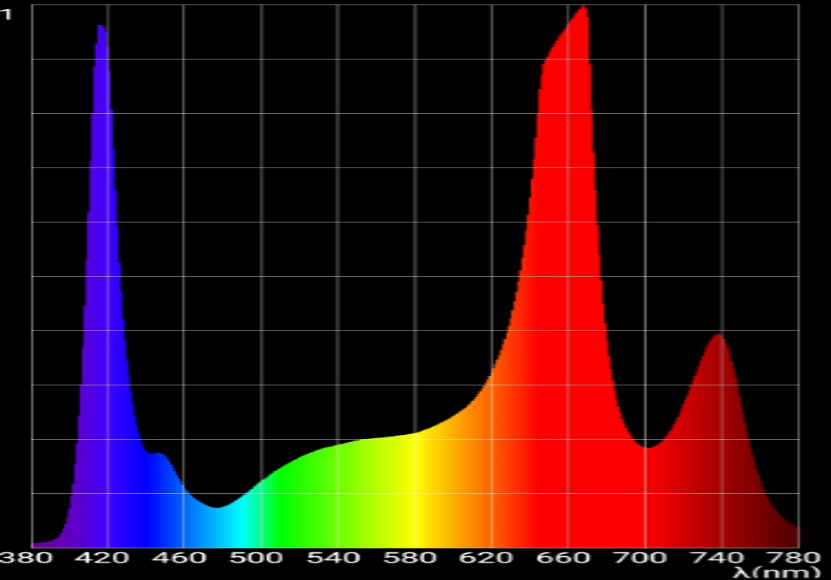

Each channel at 50% output

LED excitation sources in a plant phenotyping camera system.
A ceiling with a lot of lights on it

Actinic light and Excitation sources

The PlantExplorer EDEN features a state-of-the-art 4-channel multispectral LED system, designed to provide precise and customizable lighting conditions. This innovative setup includes channels for White, Red, Blue, and Far Red LEDs.


Customizable Spectrum: By adjusting the spectrum, different effects on plants can be measured in real time, offering unparalleled flexibility in experimental design.


Dual Functionality: The same LEDs are utilized for spectral measurements. During a measurement, the LEDs return to their calibrated intensity to ensure accurate data collection. After the measurement, they revert to the preset settings specified by the client.


The LED ceiling for imaging chlorophyll fluorescence parameters is composed of two Blue LED strings: one dedicated to the measuring pulse and the other for the saturation pulse.


Optional the PlantExplorer EDEN can be equipped with an additional Dual GFP LED ring or a GFP/RFP LED ring. Each LED is meticulously filtered to prevent any emission leakage. Additionally, these LED rings can be customized to meet any specific excitation LED requirements of the customer.

About Bronson

Bronson is an organisation that prides itself on the development and production, sales, service, and maintenance of high quality laboratory equipment such as climatic chambers, plant-growing cabinets and rooms,(cooling) incubators, incubator walls, refrigerators and freezers.


Bronson is recognized for its robust construction and multi-functionality making it an ideal solution for a broad range of applications within the laboratory or production environment.

Dutch writer Simon Carmiggelt (1913-1987) once said:
“The fascinating part of our climate is, I believe, that it is capable to deliver four seasons within one week. “

Bronson products go one step further. The Bronson product range is able to deliver the desired climate including temperature, relative humidity and CO ₂, at any moment and at any Institution. It’s all in your hands!
