PlantExplorer XS

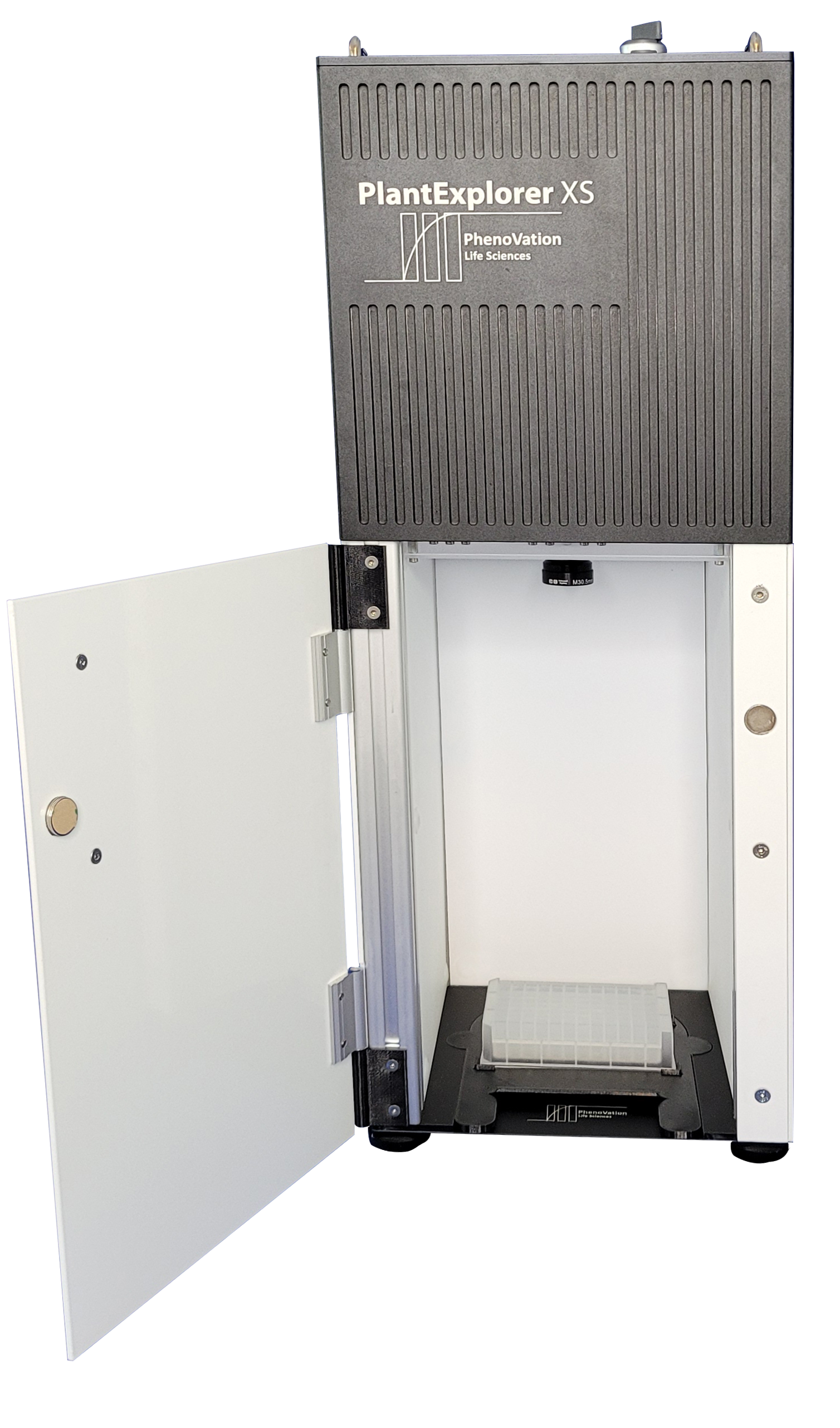

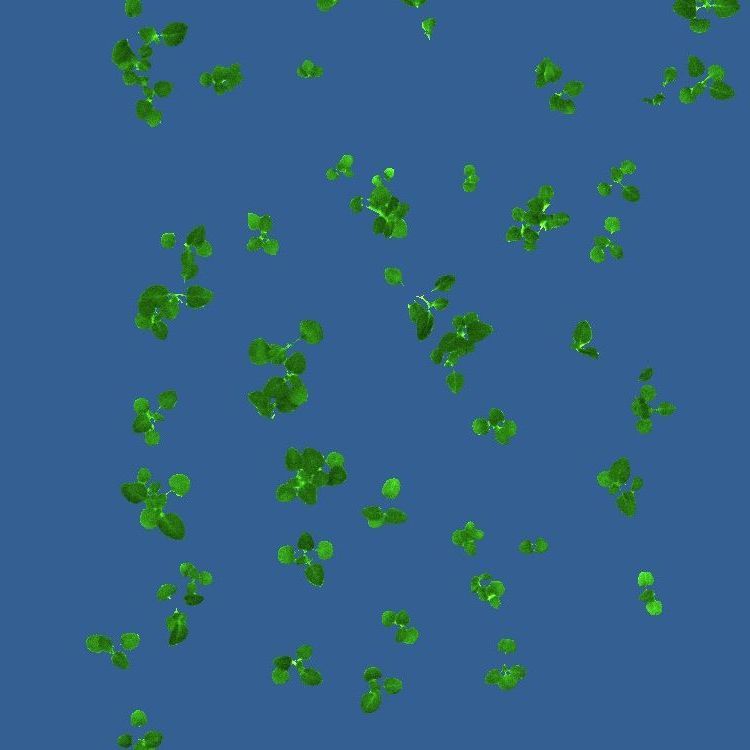

The PlantExplorer XS is an easy to use, plug and play, high tech imaging system that can image the efficiency of photosynthesis, absorption of chlorophyll and morphological parameters

Highlights

  • PAM- and Kautsky-principle chlorophyll fluorescence imaging
  • Single leaf (macro) and whole plant imaging both at 5 Mp
  • Provides: F0, Fm, Fv, Fo’, Fs’, Fm’, Fv’, Ft
  • Kinetic chlorophyll fluorescence images are provided from light adaptation and dark adaptation protocols
  • High signal-to-noise ratio of chlorophyll fluorescence images
  • Blue 450 nm LED measuring light source used for measuring Fo and so on;
  • pulse width: 10 – 100 µs / DC
  • Blue 450 nm LED saturating light source used for measuring Fm and so on;
  • pulse width: 10 – 100 µs / DC
  • LED light source with 730 nm far-red for measuring Fo’ etc.
  • Measuring distance between plant and camera ranges over a distance from 10cm– 30cm
  • Effective imaging area of 18×18 cm2
  • High quality Mp lens, with broad band visible and NIR coating
  • No visible lens distortion, no correction needed

Delivered images by controller software of PlantExplorer XS in raw data 16-bit format

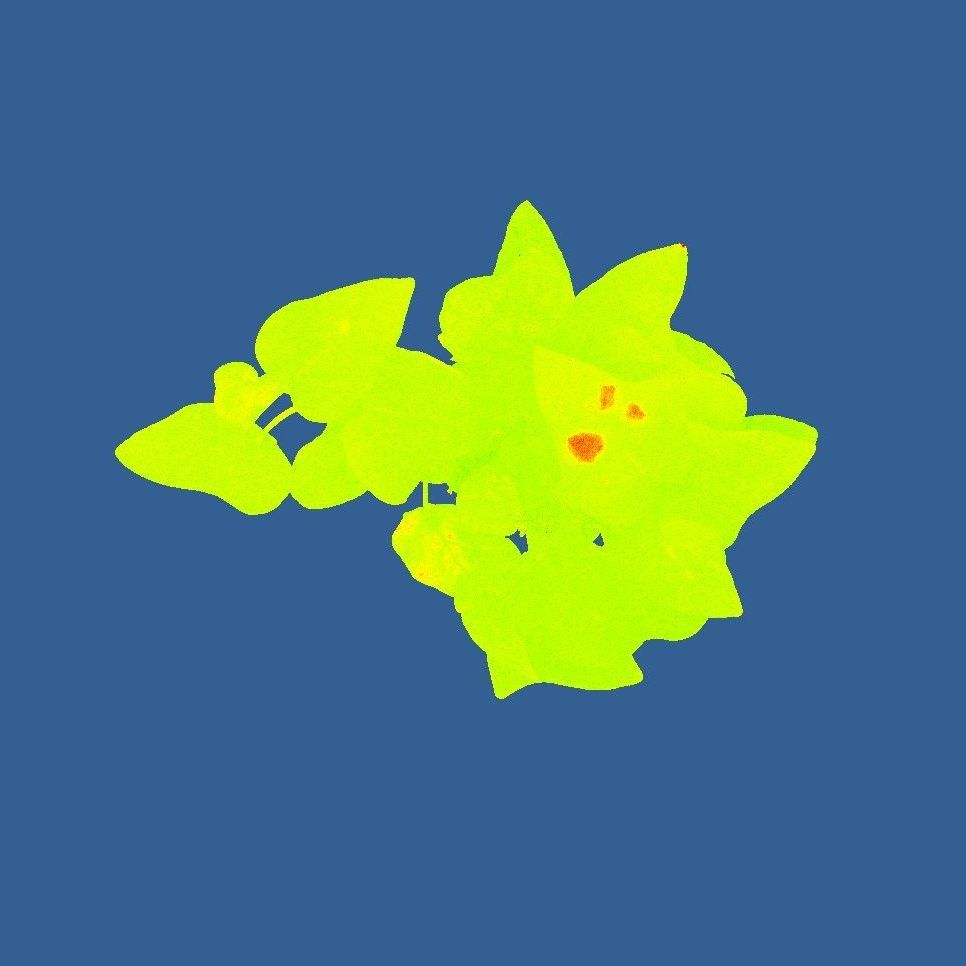

  • Fo minimum chlorophyll fluorescence image in dark adapted state
  • Fm maximum fluorescence image in dark adapted state
  • Fs’ steady state minimum chlorophyll fluorescence image in light adapted state
  • Ft instantaneous chlorophyll fluorescence image during light adaptation
  • Fm’ steady state maximum fluorescence in light state
  • Fm’(t) maximum fluorescence during light adaptation
  • Fo’ minimum chlorophyll fluorescence image during dark relaxation after applying farred
  • Fm(t) maximum fluorescence image during dark relaxation
  • Fbackground for all fluorescence images

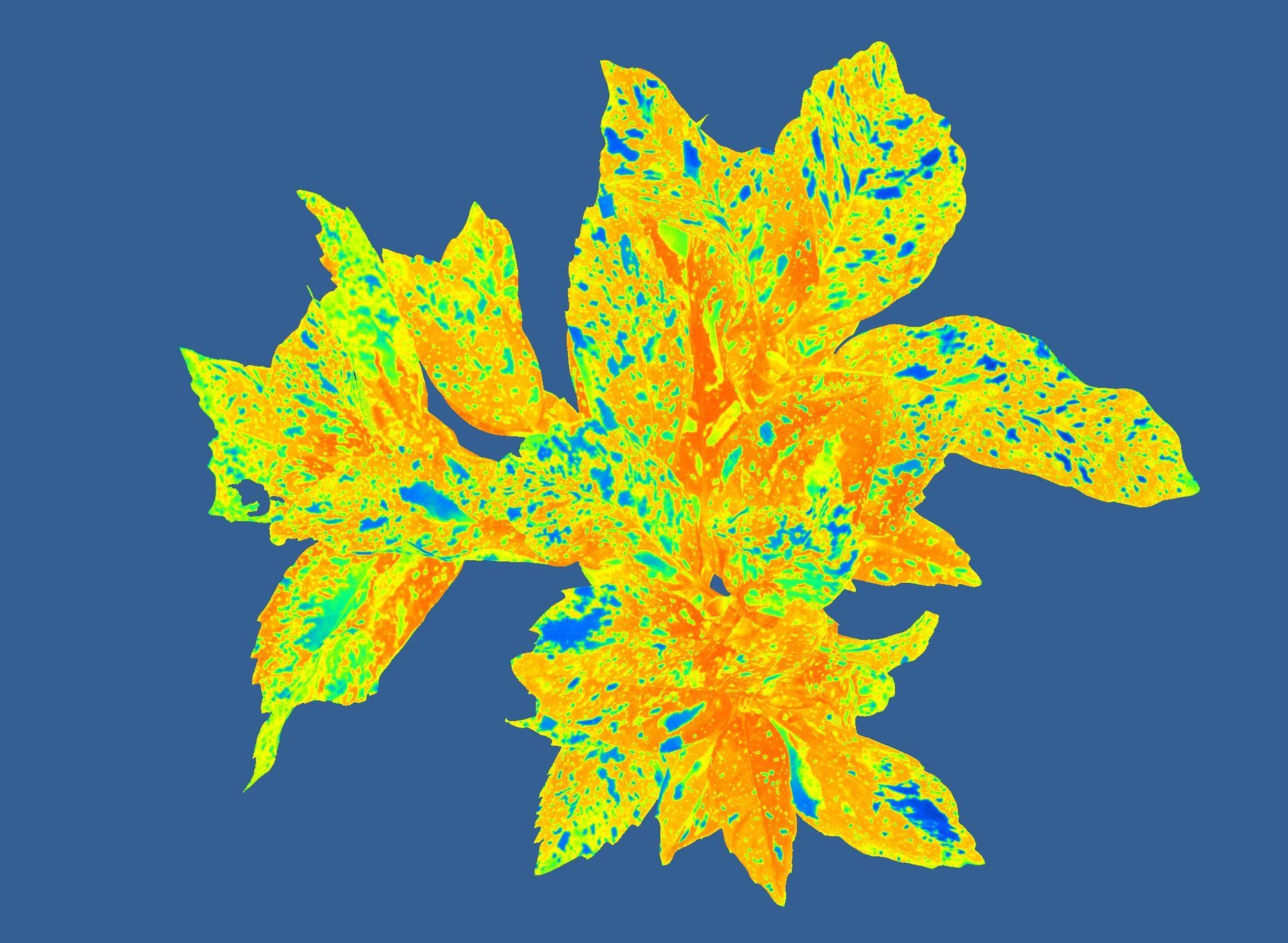

  • RNIR reflectance image at NIR wavelength, 730nm
  • RRed reflectance image for red at 660nm
  • Morphological parameters
